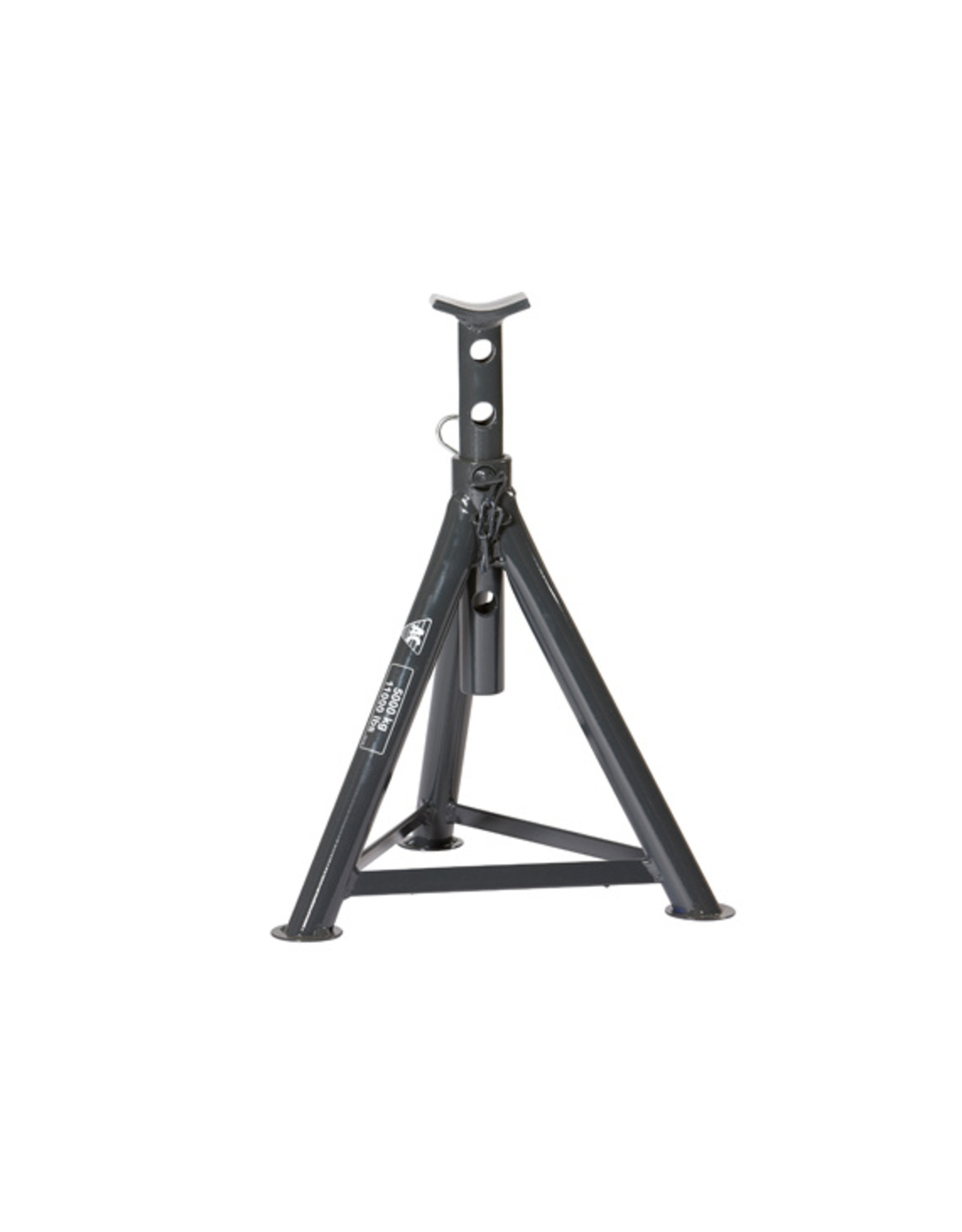

AC assteun AB5 / AB8
Artikelnummer: | AB5-365 |
Levertermijn: | 1-14 dagen |
AC Standaard assteun AB5-365
- Hefvermogen: 5 ton
- min 365- max 590mm (5 posities)
AC Standaard assteun AB8-310
- Hefvermogen: 8 ton
- min 310- max 480mm (4 posities)
AC Standaard assteun AB8-360
- Hefvermogen: 8 ton
- min 360- max 590mm (5 posities)
AC Standaard assteun AB8-580
- Hefvermogen: 8 ton
- min 580- max 950mm (6 posities)
Technical data
AB5-365 | AB8-310 | AB8-360 | AB8-580 | |
---|---|---|---|---|
Capacity | 5,0 t | 8,0 t | 8,0 t | 8,0 t |
Min. height (A) | 365 mm | 310 mm | 360 mm | 580 mm |
Max. height (B) | 590 mm | 480 mm | 590 mm | 950 mm |
Witdh (C) | 370 mm | 300 mm | 400 mm | 600 mm |
Positions | 5 | 4 | 5 | 6 |
Net weight | 6,4 kg | 6,5 kg | 10,5 kg | 15,4 kg |
WARNING:
Always use axle stands to support the vehicle before working under it
No person shall remain in, on or under a load that is being jacked or is supported only by a jack
